Confetti

The Confetti plugable widget wraps the react-dom-confetti component in a Mendix widget

Features

• Manual trigger
  • If you don't want it to listen to a datasource set the trigger with button property to render a the component as a button. When you press the button, the confetti with trigger
• Expression based trigger
  • Make the component listen to an external condition by setting an expression
• Design time configuration
  • You can configure the behavioir of the confetti at designtime, include the confetti particle colors
• Runtime configuration
  • If you want to influence the behaviour of the confetti at runtime, hook it up to a datasource

Usage

Manual standalone

1. Drag the component on a page
2. Make sure that trigger with button is set to Yes
3. Set a caption for the button [default = 'Hit me']
4. Set a delay for the explosion [default = '3000 ms']
5. Set a message for the button white couting down [default = 'Loading...']
6. Set a button style
7. If you want another action when the confetti explodes, set the action in the onclick action

Manual triggered by an expression

1. Drag the component on a page
2. make sure that trigger with button is set to No
3. Enter an expression that results in a boolean, please note the following:
   • The confetti will trigger when this expressions transitions from false to true
   • The confetti will only trigger again when this expression has gone to false.

Design time configuration

1. Drag the component on a page
2. Open the properties
3. By default designtime configuration is enabled
4. Designtime properties are on the third tab
   • Angle: direction of the explosion in degrees, defaults to: 45
   • Spread: spread of the explosion in degrees, defaults to: 45
   • Start Velocity: Initial velocity of the particles, defaults to: 10
   • Width: Width of the confetti elements defaults to: 10
   • Height: Height of the confetti elements defaults to: 50
   • Element Count: Number of particle elements, defaults to 50.
   • Drag Friction: Decrease in velocity proportional to current velocity, default to 0.1
   • Stagger: Delay for each fetti in milliseconds, defaults to: 3000
   • Duration: Duration of the explosion in ms. Defaults to 3000
   • Colors for the particals: Particle colors string, should be in the following format: #123123, #456456, #789789

Run time configuration

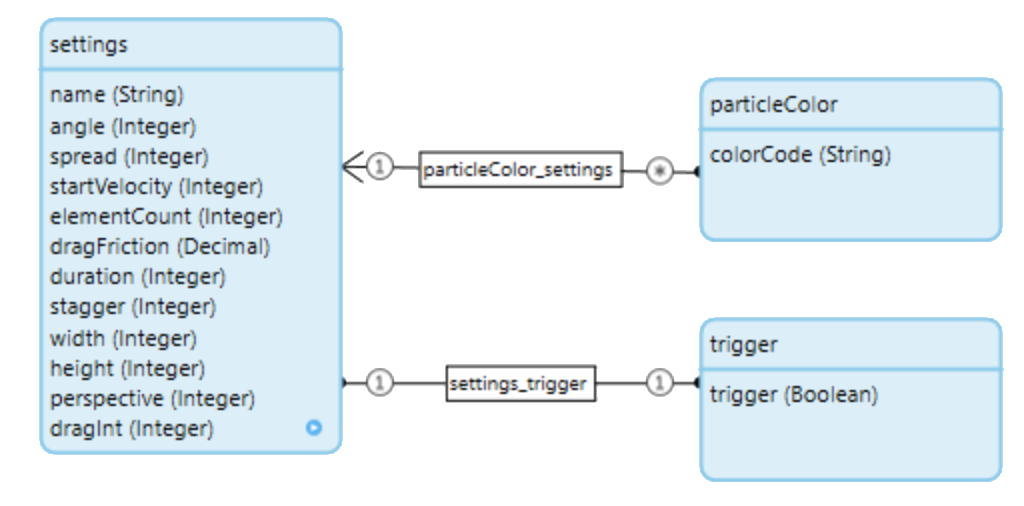

If you would like to set the configuration for a confetti at runtime, you can enable this aswell. The widget expects the following entity setup as a structure:

Settings is a list of settings, with a list of particle colors attached to it. For demo purposes each settings element also has a trigger entity.

To setup the runtime configuration as following:

Things to keep in mind: - Allthough a list of settings is passed to the widget, only the first element in the list is used. So be sure to pass a list with only one item - To pass the colorslist, a second datasource is used, this contains the list of colors - All fields need to be mapped

Demo project

[link to sandbox]

Issues, suggestions and feature requests

[link to GitHub issues]

Development and contribution

• Build as demonstration by Willem Haring (Mendix)
• Based on react-dom-confetti by Daniel Lundin
